[Group Buy] Ramune60 Keyboard Kit

DISCLAIMER

The images shown are renders of the product and are only used for illustration purposes. The end product may vary in color from the renders as there is no guarantee that they match the color of the end product 100%.

This product is in its raw, machined state without any post-processing, so scratches and machining marks may be present.

For polished products, as they are handmade, irregular shapes, streaks, or scratches may occur.

When purchasing the VENOM PCB, an HE-compatible CFRP plate will be included instead of a PP plate. Please note that the Solder PCB and PP plate are not included.

True HHKB buyers will receive two types of wires (YIKB and Cherry compatible) free of charge.

Group-Buy / Pre-order Purchase Informations

※ This is a group-buy purchase, so cancellations are not allowed.
※ This product will be manufactured after the group buy period.
※ Please Do not purchase with in-stock items.
※ Please consider carefully before joining this group buy.

Group Buy Time & Date

September 15th, 2025 to October 5th, 2025

Unlimited GB

Estimated Shipping: Q2 2026
- Please note that the expected schedule is subject to delays depending on the manufacturer's circumstances.

Ramune60 by Hato

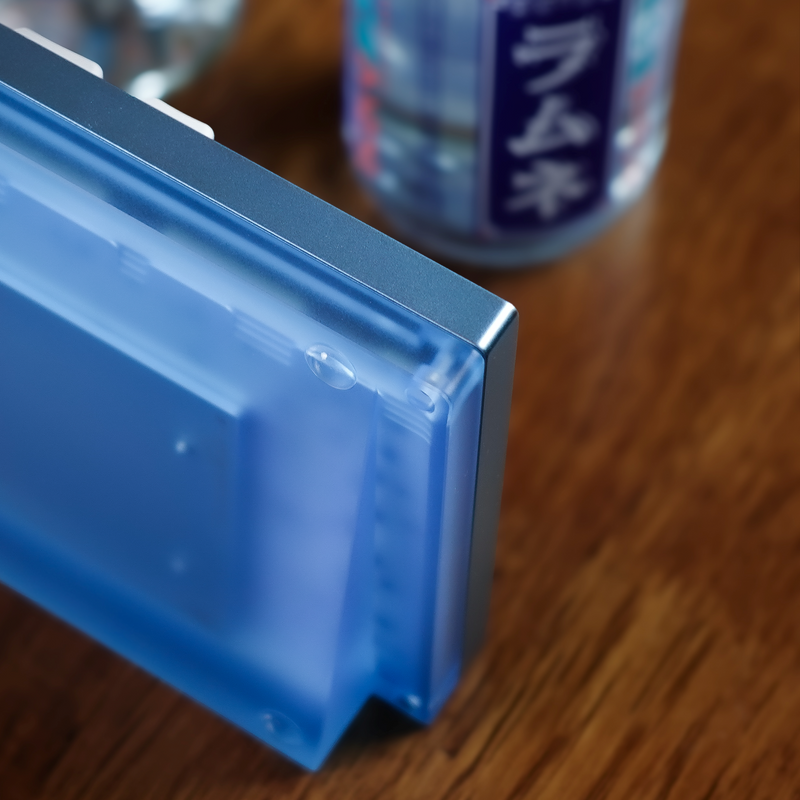

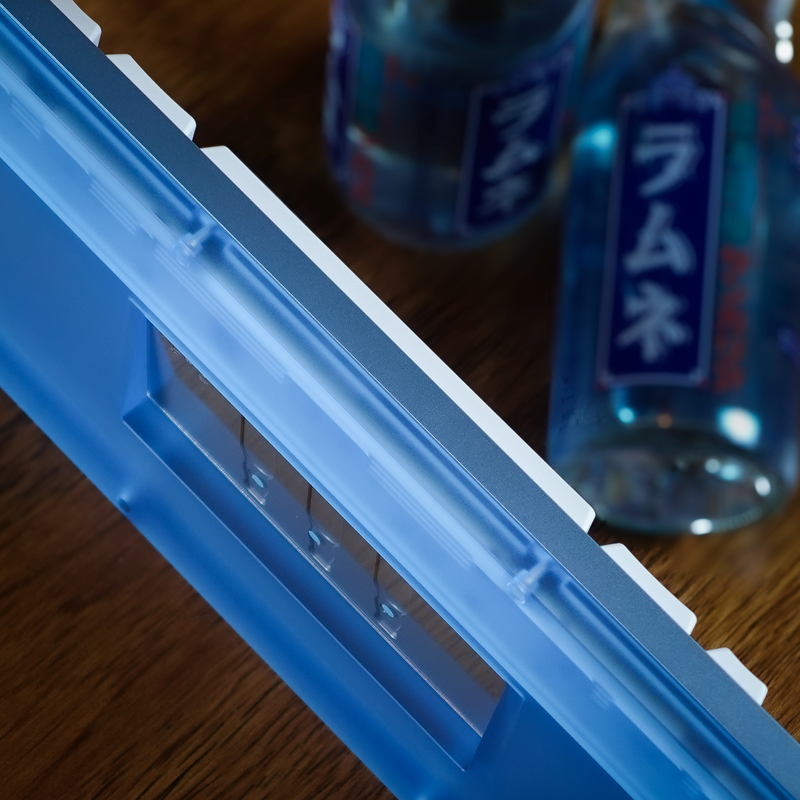

• The design of this keyboard was inspired by Ramune, the iconic Japanese soda known for its playful charm and distinctive glass bottle. With its clear lower half filled with fizzy soda, opaque top cap, and signature glass marble sealed inside, the Ramune bottle serves as a direct motif for the keyboard’s form and color palette.
• This keyboard captures the refreshing character of Ramune through both its aesthetics and sound. The low-profile case enhances usability while perfectly matching the light and breezy concept. Additionally, a carefully tested and tuned Poron gasket delivers a crisp and clear typing sound that complements the overall design.


Specification

• Layout Support:
  • True HHKB (Solder, Hotswap)
  • WKL (Solder, Hotswap, Venom60HE 7u)
  • WK (Solder, Hotswap, Venom60HE 6.25u / 7u, Venom60MX 6.25U)
• Materials:
  • Top Case: A6063 aluminum
  • Bottom Case: PC, Acrylic, PEI

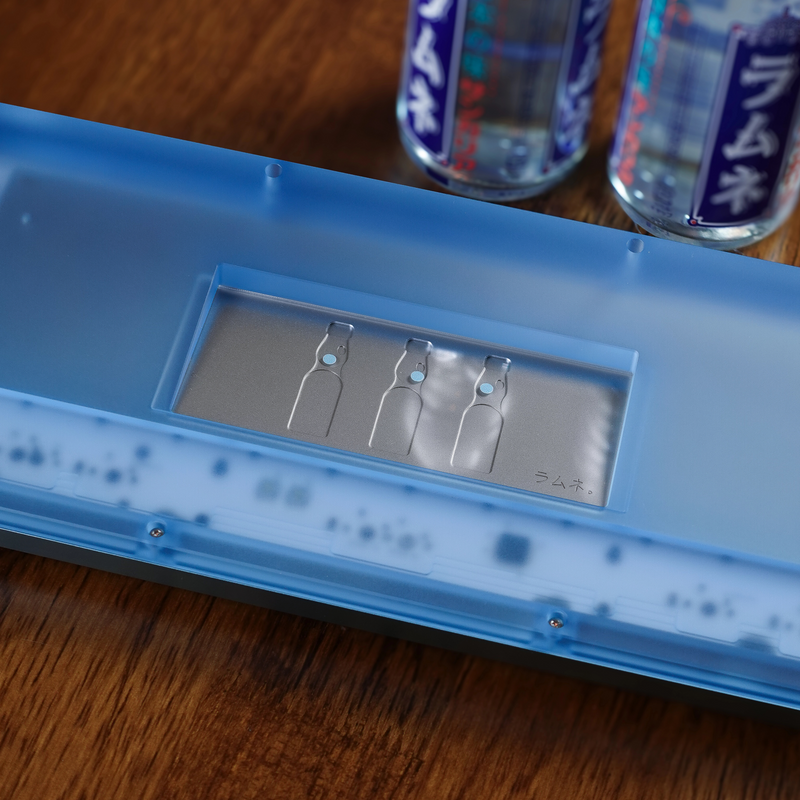

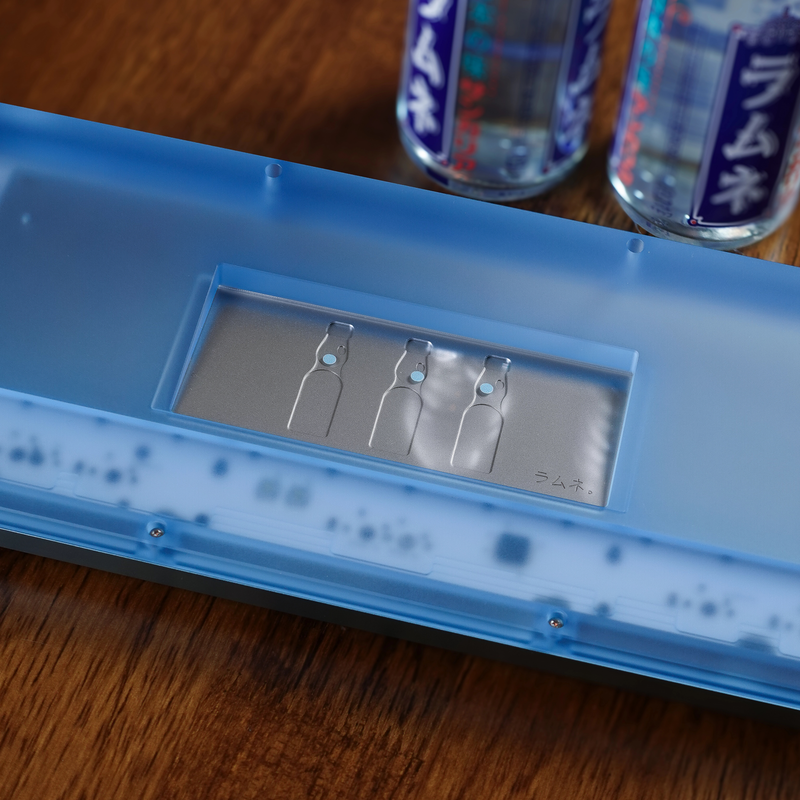

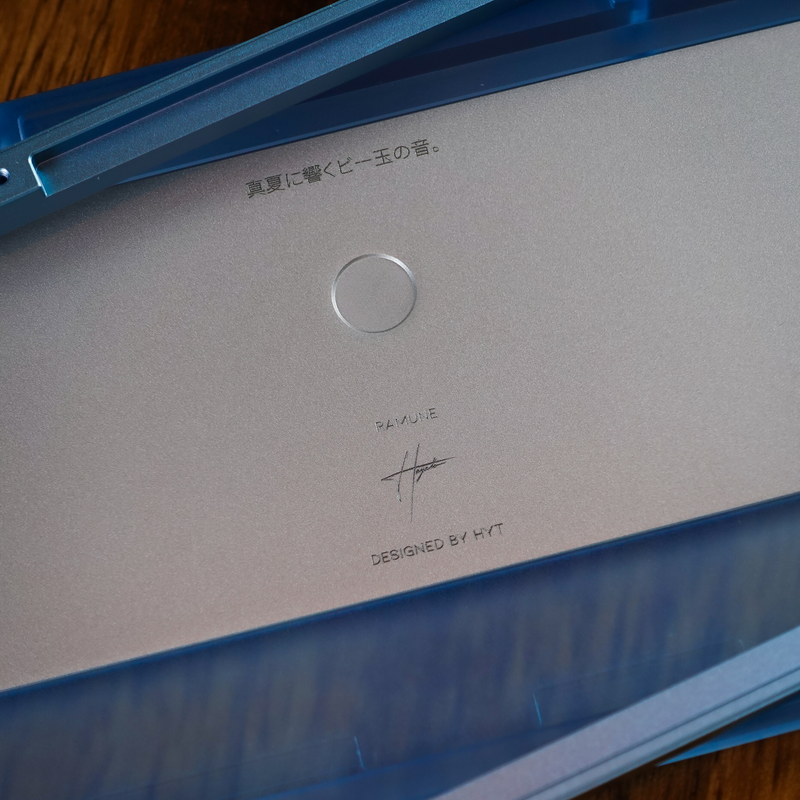

  • Weight: 304 SS with Bead Blasted
  • Typing Angle: 9 degrees
  • Front Height: 16.65 mm
  • Weight (Built): Approximately 1.1 kg

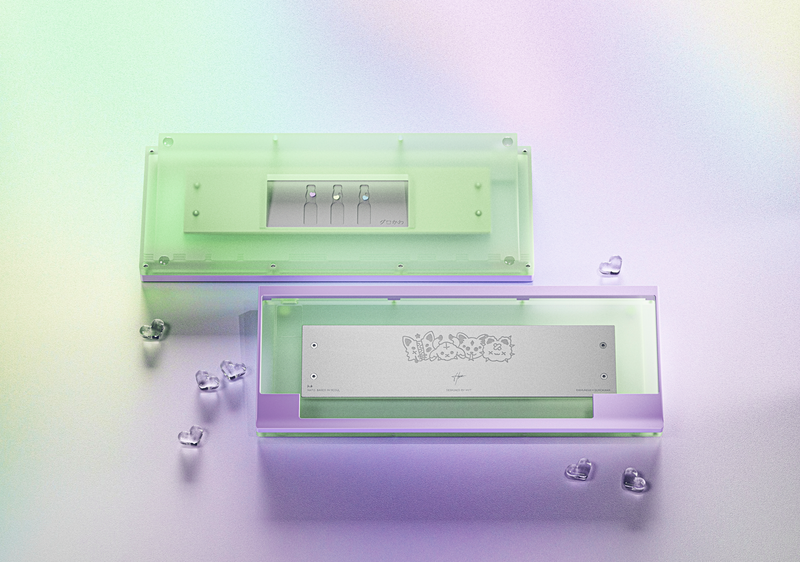

• Case Colors:

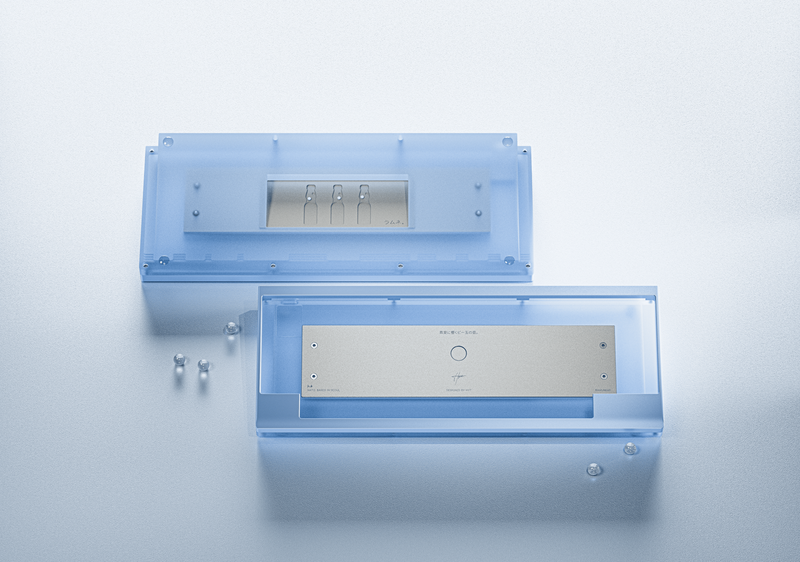

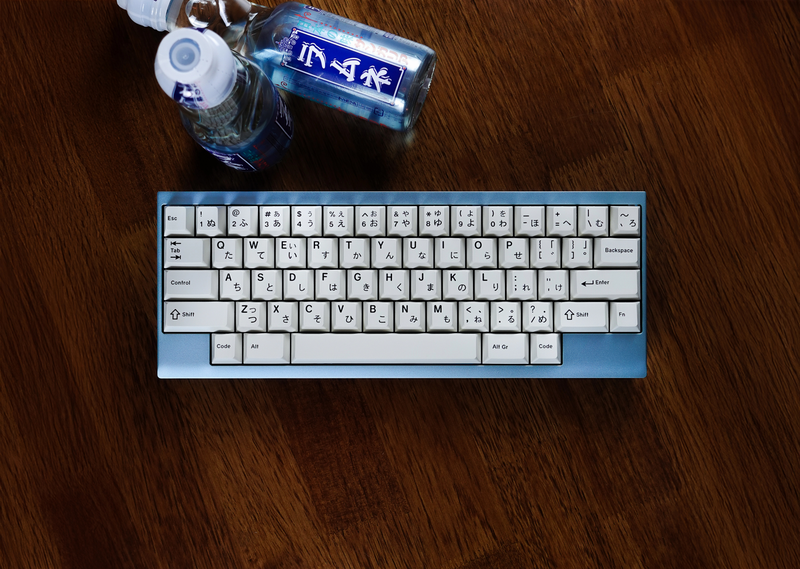

  • Blue / Dyed PC

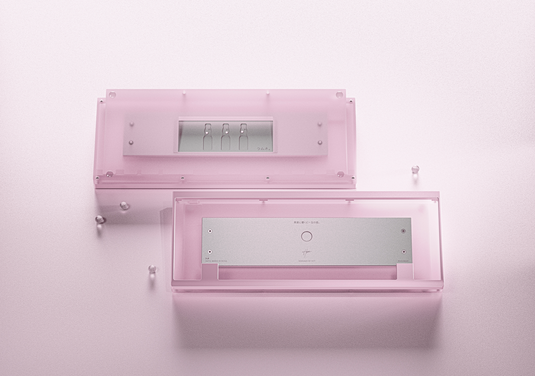

  • Pink / Dyed PC

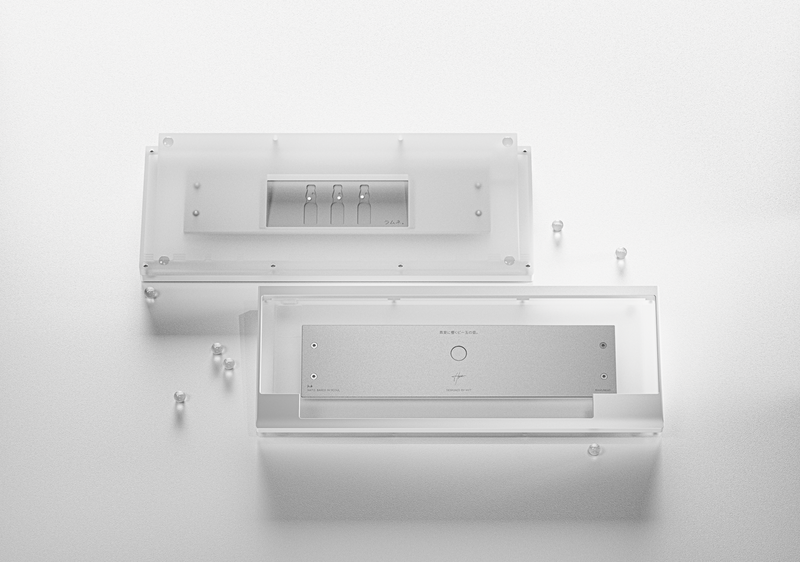

  • Silver / Acrylic

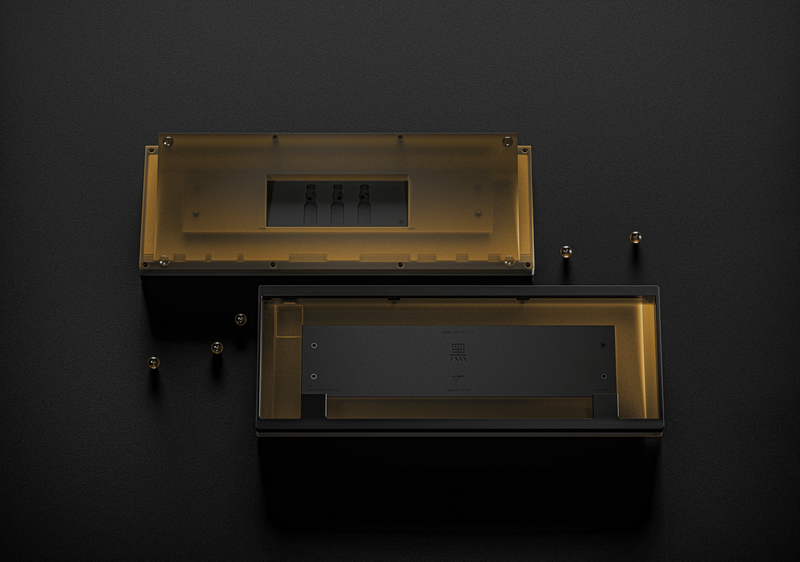

  • Black / PEI, Kuro Edition
  • Gurokawa / Dyed PC, GMK Gurokawa Collab
• Weight:
  • Bead Blasted SS (Base option)
  • Bead Blasted SS with Black Coated (Kuro Edition)

• PCB:
  • Solder / Hotswap with RGB Underglow (QMK / VIA compatible)
  • VENOM60HE RGB (Hall Effect)
  • VENOM60MX Hotswap 8Khz (QMK / VIA compatible)
    (When purchasing the VENOM PCB, an HE-compatible CFRP plate will be included instead of a PP plate. Please note that the Solder PCB and PP plate are not included.)
• Plate:
  • PP (Base Option)
  • Aluminium
  • PC
  • PEI
• Gasket
  • Poron LE-20 Black, 2.5mm
  • GTC30 White, 3.0mm
• Feet
  • 3M SJ5302 Bumpon
• DeskMat
  • 900x400x4mm, Rough Surface

Layout:

• Solderable, Hotswappable PCB
  • 2u Backspace, Split Backspace
  • Normal CapsLock, Stepped CapsLock
  • 2.75 Right Shift, Split Right Shift

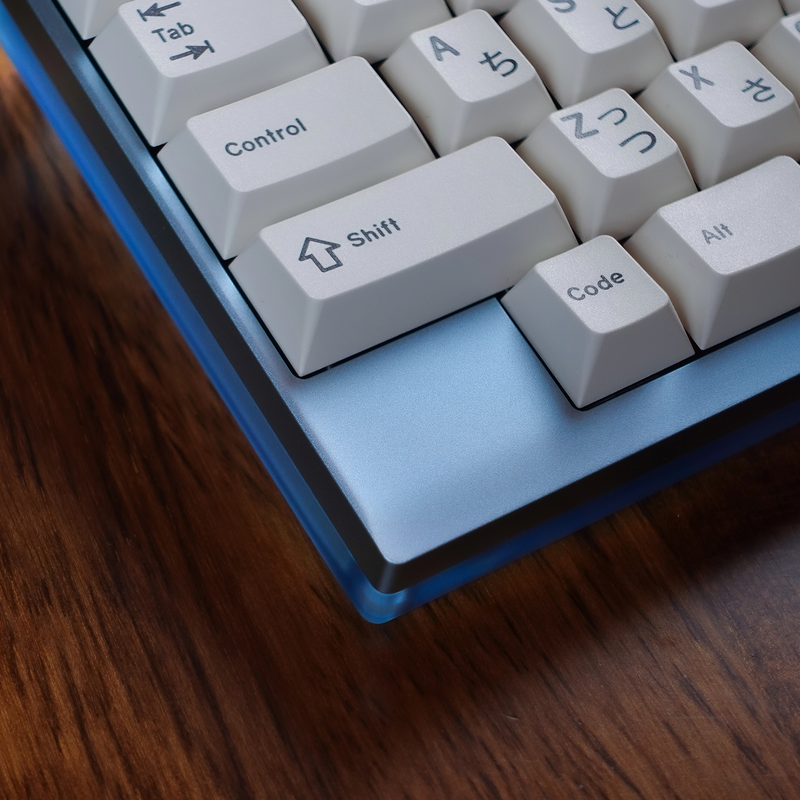

  • 7u Tsangan, 6u True HHKB
•  VENOM60MX Hotswap 8Khz PCB
  • Poker Layout, 6.25u
• VENOM60HE 6.25U RGB PCB
  • Poker Layout, 6.25u
• VENOM60HE 7U RGB PCB
  • 2u Backspace, Split Backspace
  • Normal CapsLock
  • Split Right Shift
  • 7u Tsangan

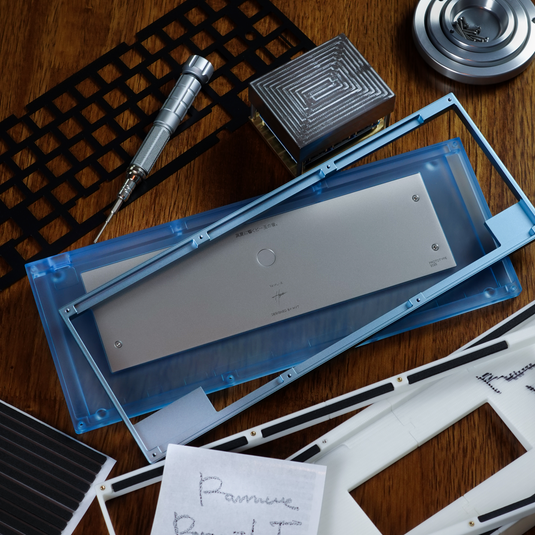

Included in Base Kit:

• Top Case x 1
• Bottom Case x 1
• Weight x 1
• Acryl Panel x 1
• PP Plate x 1
• Solder PCB x 1

• 3M Feet x 2
• Carrying case x 1
• Screws and Screw Driver
• ID Card

Vendors:

• KR: Geonworks
• US: Divinikeys
• CA: Minokeys
• EU: DeltaKeyCo
• OCE: KeebznCables
• SG: Ktechs
• MY: MechaMY
• CN: TypistClub
• UK: Prototypist
• TH: Aiglatson Studio

Designed by Hato, Seoul Korea

Managed by Geonworks
